Snapshots

The snapshot submodule allows the users to manage snapshot groups. Snapshot groups are a set of points in time that will be used for the information marts, enrichment, and data quality tests.

Create a snapshot group

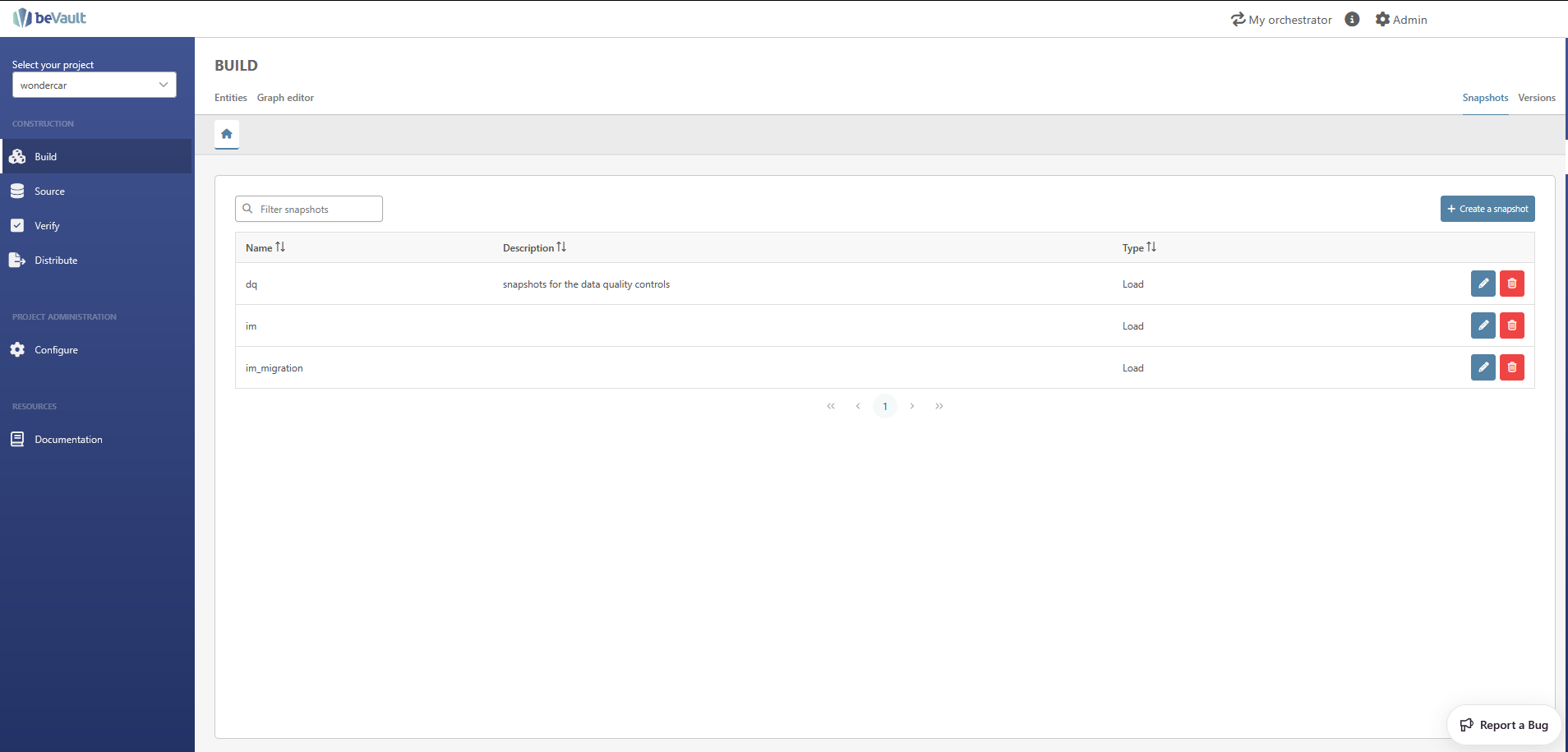

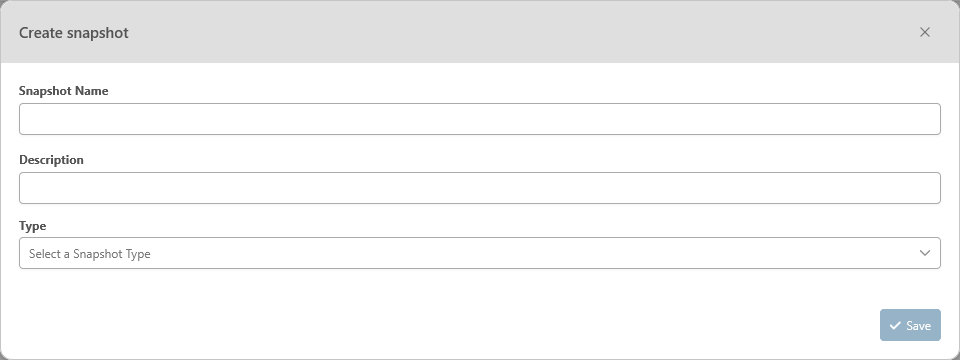

To create a snapshot group, click on the “Create Snapshots” button in the upper-right corner of the screen. This will open a modal where the user can enter the descriptive data of the snapshot group.

Each snapshot group requires those fields:

• Snapshot Name: MANDATORY the name of the snapshot group

• Description: the description of the snapshot group

• Type: MANDATORY the type of snapshot group. (CFR below)

  • Reference

  • Schedule

  • Load

• Arguments: depending on the type selected, additional information may be required (CFR below)

Once the fields are filled in, click on the “Save” button. Once deployed on an environment (CFR versions), a state machine will be created to populate the snapshot referential with all the dates based on the configuration made here.

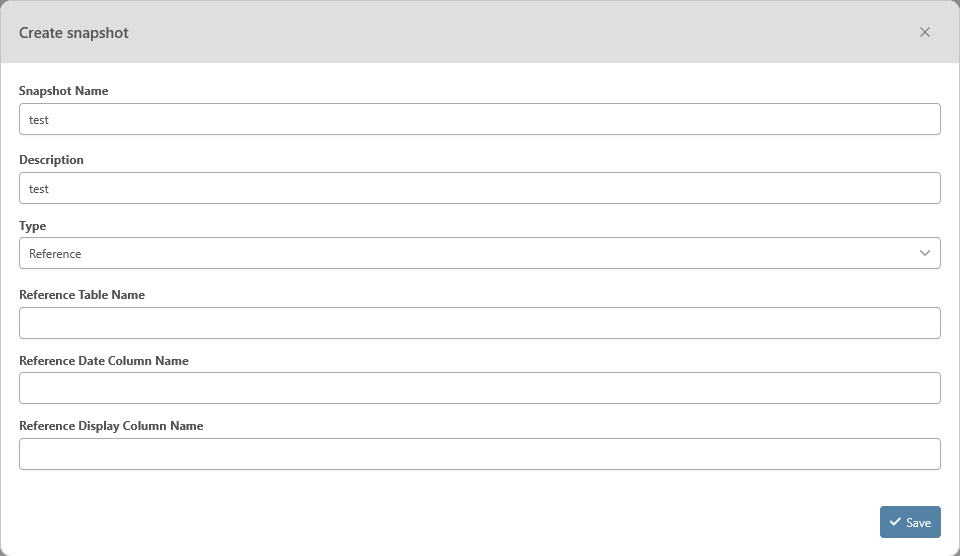

Reference

A reference snapshot is a set of points in time based on another table of the data vault (typically a referential in the ref schema)

• Reference Table Name: the physical name of the referential containing the list of points in time (e.g., ref.snapshot_referential)

• Reference Date Column Name: The name of the column that contains the date of the point in time

• Reference Display Column Name: The name of the column that contains the display name of each point in time

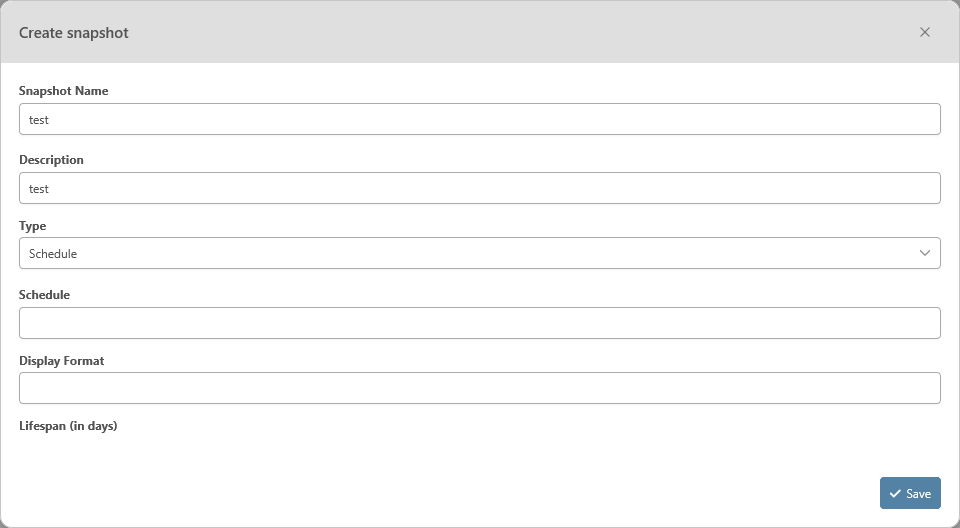

Schedule

A scheduled snapshot is a snapshot group that will generate a new point in time at a specific frequency (e.g., one new snapshot date every month)

• Schedule: Cron expression of the schedule to load the pit table. (optional) This schedule should be manually set for the state machine generated for this snapshot. Format documentation: https://crontab.guru/

• Display Format: Format to be applied to generate the display name of the snapshot. For Postgres, you can check the format documentation on this page: https://www.postgresql.org/docs/9.6/functions-formatting.html

• Lifespan: Number of days after which the snapshot is deleted.

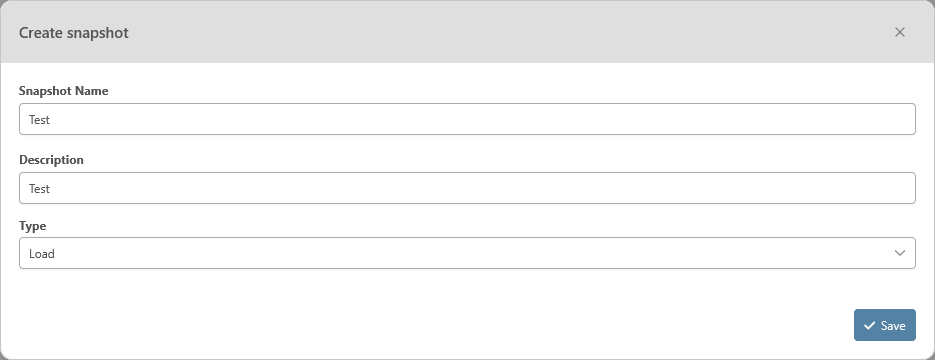

Load

This type of snapshot group will generate a new snapshot every time the associated state machine is executed.
It requires no additional parameters.

Edit a snapshot group

To edit a snapshot group, click on the edit button. A modal will open with descriptive information (CFR Create a snapshot group)

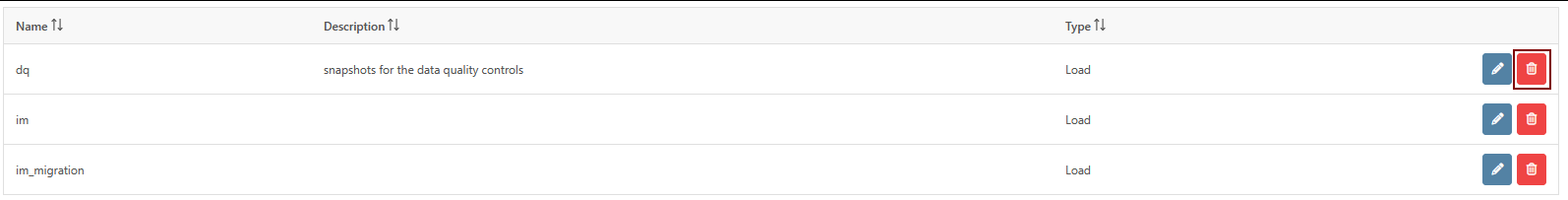

Delete a snapshot group

To delete a snapshot group, click on the trash can button. A confirmation will be required.

Use a snapshot group

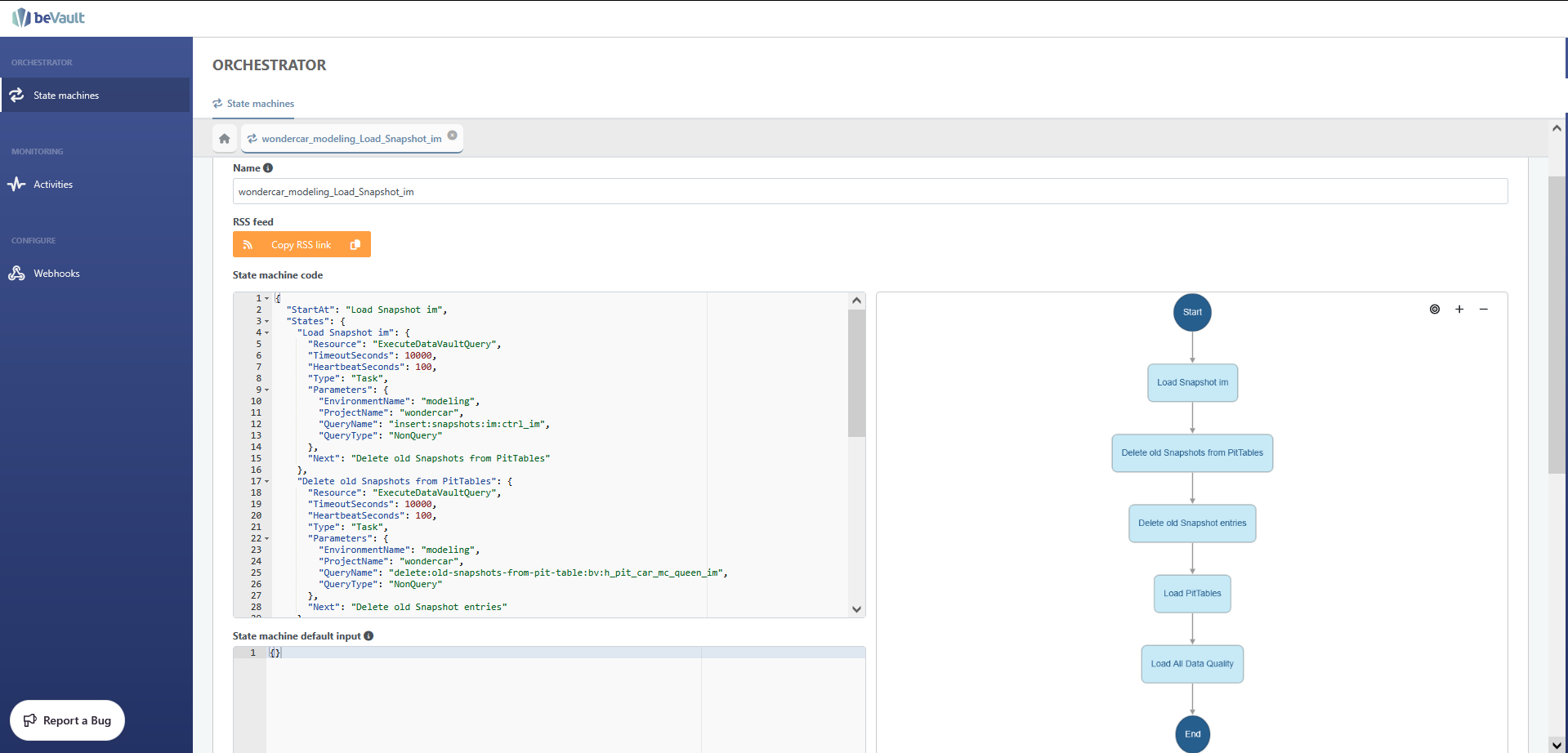

As explained earlier, a state machine will be generated for each snapshot group with the deployment of a new version. The state machine has the following name : [project]-[environment]-[snapshot name]

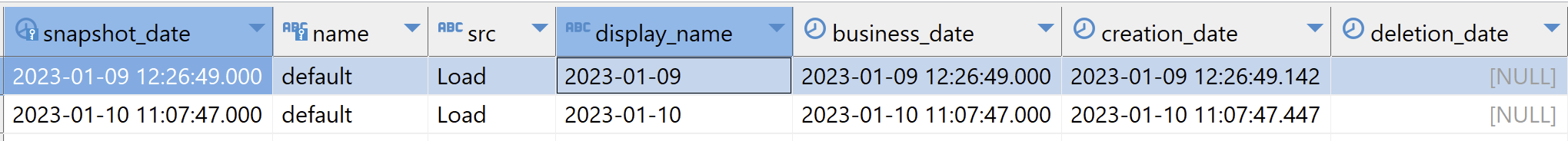

Once executed, the snapshot dates will be available in the table ref.snapshot_dates.

It can be used afterward in the information mart scripts to get the values at certain given points in time like this:

SELECT
  h_car.bk
  ,vsh_car_crm_info.*
  ,snapshot_dates.snapshot_date
FROM dv.h_car
CROSS JOIN ref.snapshot_dates
INNER JOIN dv.vsh_car_crm_info ON vsh_car_crm_info.hk = h_car.hk
      AND snapshot_dates.snapshot_date BETWEEN vsh_car_crm_info.load_dts AND vsh_car_crm_info.load_end_dts
WHERE snapshot_dates.name = 'default'
