Production deployment

DThis section aims to provide information to deploy an instance for production usage by giving tips regarding best practices for configuration and highlighting some security aspects.

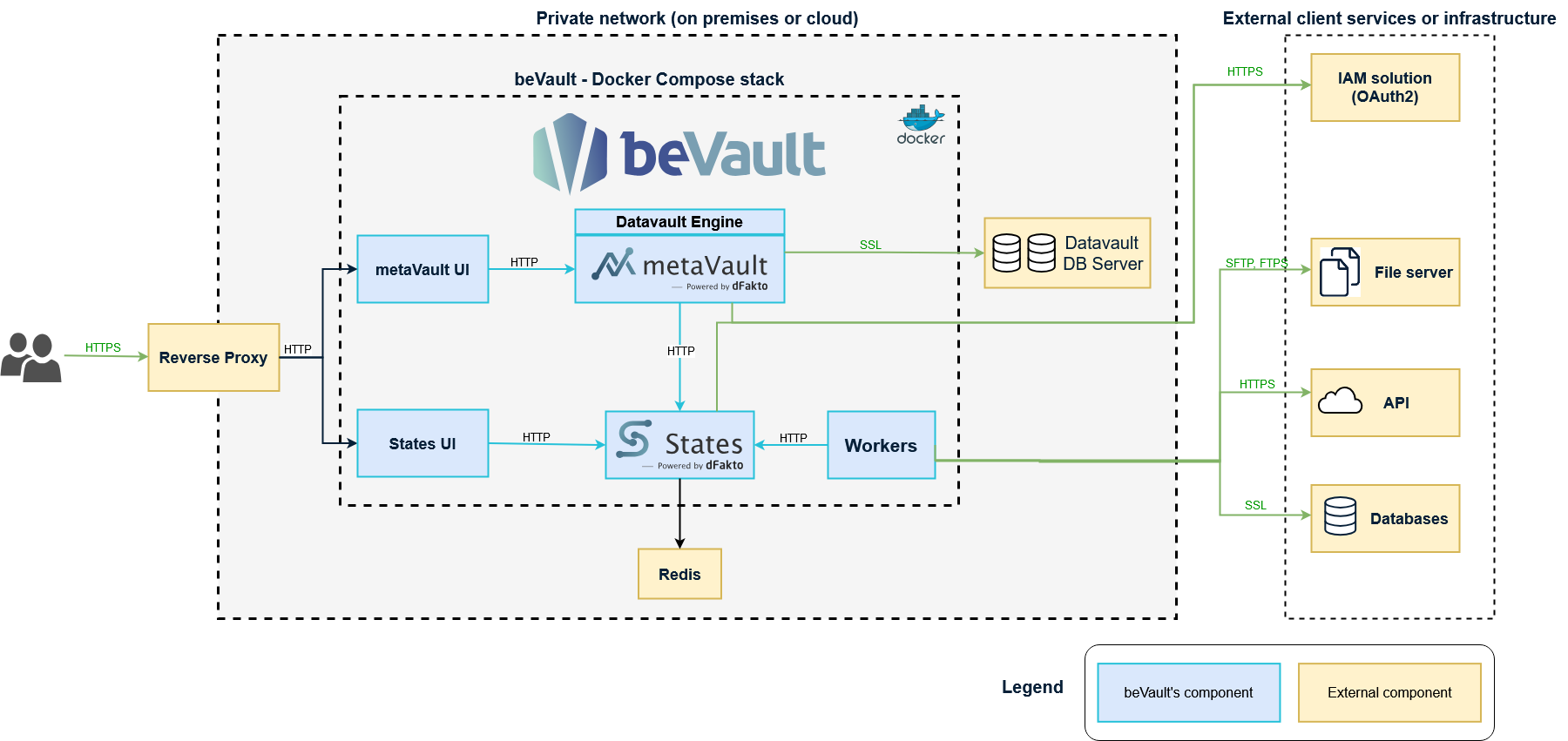

The following schema represents our recommended architecture with docker compose

This architecture is a standard example but may vary depending on your existing infrastructure and services like :

If you do not have a redis or database server, you can deploy one alongside beVault in the docker compose stack (see Local deployment for an example on how to deploy these components)
External services such as IAM solution, file transfer solution, API, … may be available in your private network and so secure connections may not be required
If you have multiple infrastructures or private networks, there is a possibility to deploy mutiple workers components on each infra or private networkwhich may prevent adpating firewall rules to allow connection to external data

Deployment

This example is designed to deploy only beVault components, all requirements and especially those described in the External solution requirements must be setup beforehand.

Create a directory to host the solution (/opt/dfakto, C:\Program Files\dFakto, …)

Create a file named docker-compose.yml with the following content

YAML

services:
  states:
    image: quay.io/dfakto_org/states:${STATES_VERSION}
    container_name: states
    volumes:
      - states-data:/var/lib/dfakto-states
    environment:
      DFAKTO_STATES_STATECORE__REDISOPTIONS: "${REDIS_HOST}:${REDIS_PORT}"
      DFAKTO_STATES_STATECORE__AWSACCESSKEY: "${STATES_ACCESS_KEY}"
      DFAKTO_STATES_STATECORE__AWSSECRETKEY: "${STATES_SECRET_KEY}"
      DFAKTO_STATES_AUTHENTICATION__AUTHORITY: "${IDENTITY_SERVER_URL}"
      DFAKTO_STATES_AUTHENTICATION__CLIENTID: "${IDENTITY_SERVER_CLIENT_ID}"
      DFAKTO_STATES_AUTHENTICATION__AUDIENCE: "${IDENTITY_SERVER_CLIENT_AUDIENCE}"
    restart: unless-stopped

  workers:
    image: quay.io/dfakto_org/workers:${WORKERS_VERSION}
    container_name: workers
    environment:
      DFAKTO_WORKERS_STEPFUNCTIONS__authenticationKey: "${STATES_ACCESS_KEY}"
      DFAKTO_WORKERS_STEPFUNCTIONS__authenticationSecret: "${STATES_SECRET_KEY}"
      DFAKTO_WORKERS_STEPFUNCTIONS__serviceUrl: "http://states:5500"
      DFAKTO_WORKERS_STEPFUNCTIONS__EnvironmentName: "${WORKERS_ENVIRONMENT}"
    depends_on:
      - states
    volumes:
      - workers-data:/var/lib/dfakto-workers
    restart: unless-stopped

  metavault:
    image: quay.io/dfakto_org/metavault:${METAVAULT_VERSION}
    container_name: metavault
    environment:
      DFAKTO_METAVAULT_STEPFUNCTIONS__authenticationKey: "${STATES_ACCESS_KEY}"
      DFAKTO_METAVAULT_STEPFUNCTIONS__authenticationSecret: "${STATES_SECRET_KEY}"
      DFAKTO_METAVAULT_STEPFUNCTIONS__serviceUrl: "http://states:5500"
      DFAKTO_METAVAULT_AUTHENTICATION__AUTHORITY: "${IDENTITY_SERVER_URL}"
      DFAKTO_METAVAULT_AUTHENTICATION__CLIENTID: "${IDENTITY_SERVER_CLIENT_ID}"
      DFAKTO_METAVAULT_AUTHENTICATION__AUDIENCE: "${IDENTITY_SERVER_CLIENT_AUDIENCE}"
      DFAKTO_METAVAULT_AUTHENTICATION__ADMINEMAIL: "${ADMIN_EMAIL}"
      DFAKTO_METAVAULT_SERVERS__${DB_ENV_NAME}__NAME: "${DB_HOST}"
      DFAKTO_METAVAULT_SERVERS__${DB_ENV_NAME}__PORT: "${DB_PORT}"
      DFAKTO_METAVAULT_SERVERS__${DB_ENV_NAME}__DATABASETYPE: "${DB_TYPE}"
      DFAKTO_METAVAULT_SERVERS__${DB_ENV_NAME}__USERNAME: "${DB_RW_USER}"
      DFAKTO_METAVAULT_SERVERS__${DB_ENV_NAME}__PASSWORD: "${DB_RW_PASSWORD}"
      DFAKTO_METAVAULT_SERVERS__${DB_ENV_NAME}__READONLYUSERNAME: "${DB_RO_USER}"
      DFAKTO_METAVAULT_SERVERS__${DB_ENV_NAME}__READONLYPASSWORD: "${DB_RO_PASSWORD}"
    depends_on:
      - states
    volumes:
      - metavault-data:/var/lib/dfakto-metavault
    restart: unless-stopped

  metavault-ui:
    image: quay.io/dfakto_org/df2-ui:${METAVAULT_UI_VERSION}
    container_name: metavault-ui
    ports:
      - 8080:80
    environment:
      METAVAULT_API_URL: http://metavault:5000
    healthcheck:
      test: service nginx status || exit 1
      interval: 10s
      timeout: 3s
      retries: 10
    depends_on:
      - metavault
    restart: unless-stopped

  states-ui:
    image: quay.io/dfakto_org/states-ui:${STATES_UI_VERSION}
    container_name: states-ui
    ports:
      - 5500:80
    environment:
      STATES_API_URL: http://states:5500
    healthcheck:
      test: service nginx status || exit 1
      interval: 10s
      timeout: 3s
      retries: 10
    depends_on:
      - states
    restart: unless-stopped

volumes:
  metavault-data:
  states-data:
  workers-data:

Adapt the configuration to your needs. All variables are indicated by this convention : ${VARIABLE} and must be changed, see Advanced configuration for more information regarding expected values.
Execute the command docker compose up -d in the directory where you create the file

Check if containers are running correctly by executing docker ps command. The output should look like this (no restarting containers) :

CODE

CONTAINER ID   IMAGE                                COMMAND                  CREATED         STATUS                     PORTS                              NAMES
5f5bccc5c143   quay.io/dfakto_org/workers:latest    "/app/dFakto.States.…"   6 minutes ago   Up 6 minutes (healthy)                                        workers
772c65e05f8a   quay.io/dfakto_org/metavault:latest  "dotnet dFakto.DataV…"   6 minutes ago   Up 6 minutes (unhealthy)                                      metavault
b52f195907fb   quay.io/dfakto_org/df2-ui:latest     "/docker-entrypoint.…"   6 minutes ago   Up 6 minutes (healthy)     0.0.0.0:8080->80/tcp               metavault-ui
9b4efd0f766e   quay.io/dfakto_org/states:latest     "dotnet dFakto.State…"   6 minutes ago   Up 6 minutes (unhealthy)                                      states
a1e3495b071a   quay.io/dfakto_org/states-ui:latest  "/docker-entrypoint.…"   6 minutes ago   Up 6 minutes (healthy)     0.0.0.0:5500->80/tcp               states-ui

Configuration

The docker-compose.yml file above only contains mandatory configuration keys to run beVault, to have more information regarding the configuration of each component, you can refer to the Advanced configuration section of the documentation.

Metavault, States and workers components support 2 different ways for configuration :

Environment variables
Json files

Environments variables can be defined directly in the docker-compose.yml file or in a separate .env file, as explained in the docker compose official documentation : https://docs.docker.com/compose/environment-variables/set-environment-variables/.

Json configuration files requires several adaptations regarding the

Create a directory per component (example: /opt/dfakto/config/{component})

Create one or multiple json files with the component configuration. Example for metavault :

states.json

JSON

{
   "stepFunctions": {
     "authenticationKey": "${STATES_ACCESS_KEY}",
     "authenticationSecret": "${STATES_SECRET_KEY}",
     "serviceUrl": "http://states:5500",
   }
 }

openid.json

JSON

{
  "Authentication": {
    "AdminEmail": "${ADMIN_EMAIL}",
    "Authority": "${IDENTITY_SERVER_URL}",
    "ClientId": "${IDENTITY_SERVER_CLIENT_ID}",
    "Audience": "${IDENTITY_SERVER_CLIENT_AUDIENCE}"
  }
}

dv-server.json

JSON

{
  "Servers": {
    "${DB_ENV_NAME}": {
      "Name": "${DB_HOST}",
      "Port": "${DB_PORT}",
      "DatabaseType": "${DB_TYPE}",
      "Username": "${DB_RW_USER}",
      "Password": "${DB_RW_PASSWORD}",
      "ReadOnlyUsername": "${DB_RO_USER}",
      "ReadOnlyPassword": "${DB_RO_PASSWORD}"
    }
  }
}

Remove the environment section and mount the config directory to the related container in the docker-compose.yml file. Example for metavault :

YAML

services:
  metavault:
    image: quay.io/dfakto_org/metavault:${METAVAULT_VERSION}
    container_name: metavault
    depends_on:
      - states
    volumes:
      - metavault-data:/var/lib/dfakto-metavault
      - /opt/dfakto/config/metavault:/var/lib/dfakto-metavault/config
    restart: unless-stopped

volumes:
  metavault-data:

Best practices

Do not use latest version because you may upgrade your application (with the command docker compose pull for example) and miss some important steps to perform during a specific upgrade. We recommend using a specific number for each component and update regularly.

By default, logs are not persisted (only exposed on the standard console, available with docker logs command) and are lost each time the container restart. We recommend adapting the logs configuration to persists them in files and mount a volume to ensure these files are persisted on the host. Example for metavault :

YAML

  metavault:
    image: quay.io/dfakto_org/metavault:${METAVAULT_VERSION}
    container_name: metavault
    environment:
      DFAKTO_METAVAULT_Serilog__WriteTo__0__Args__outputTemplate: "[{Timestamp:yyyy-MM-dd HH:mm:ss.fff} {Level:u3}] {Message:lj} <s:{SourceContext}>{NewLine}{Exception}"
      DFAKTO_METAVAULT_Serilog__WriteTo__0__Args__theme: "Serilog.Sinks.SystemConsole.Themes.AnsiConsoleTheme::Code, Serilog.Sinks.Console"
      DFAKTO_METAVAULT_Serilog__WriteTo__0__Name: "Console"
      DFAKTO_METAVAULT_Serilog__WriteTo__1__Args__fileSizeLimitBytes: "10000000"
      DFAKTO_METAVAULT_Serilog__WriteTo__1__Args__path: "/var/log/metavault/log.txt"
      DFAKTO_METAVAULT_Serilog__WriteTo__1__Args__retainedFileCountLimit: "10"
      DFAKTO_METAVAULT_Serilog__WriteTo__1__Args__rollingInterval: "Day"
      DFAKTO_METAVAULT_Serilog__WriteTo__1__Args__rollOnFileSizeLimit: "True"
      DFAKTO_METAVAULT_Serilog__WriteTo__1__Name: "File"
    depends_on:
      - states
    volumes:
      - metavault-data:/var/lib/dfakto-metavault
      - metavault-logs:/var/log/metavault
    restart: unless-stopped

volumes:
  metavault-data:
  metavault-logs:

Security

Even if it’s not mandatory we strongly recommend setting an SSL reverse proxy ahead of beVault application to encrypt all incoming HTTP requests. More information here : NGINX Proxy & HTTPS
We recommend also to activate an encryption mechanism on your database server
