How to extract data from an API?

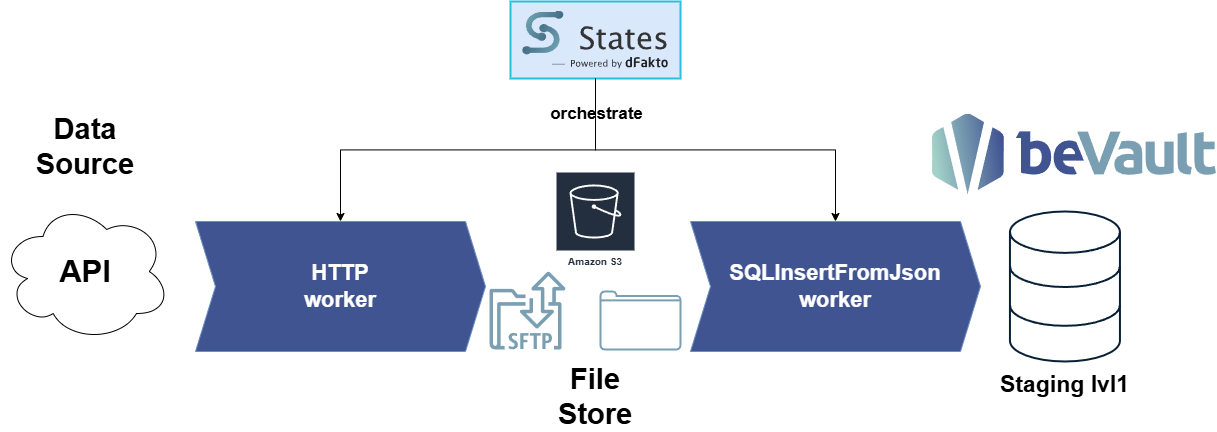

This guide shows three common patterns to extract data from a REST API using the Http worker, persist the response to a fileStore (e.g., S3), and load it into a staging layer:

Pattern A: Simple extraction to fileStore, then direct column mapping into a staging table (with truncate first).
Pattern B: Dump raw JSON into a “single-column” staging table and pivot via a staging view.
Pattern C: Handle paginated APIs (loop over pages using Link headers).

Sending API responses to a fileStore avoids overloading State logs and prevents data from being written to execution logs.

Prerequisites

The fileStore “extract” (or your chosen store) is configured and accessible by the Http and sqlInsertFromJson workers.
Staging database connection(s) exist (e.g., bevault-staging).

=> CFR How to configure a Store for States' Workers? to see how to configure the different stores required

API credentials are available (often injected via HttpHeaders Authorization or similar).
Target staging tables exist (or you have DDL ready to create them).

Pattern A — Direct column mapping into a staging table

Goal:

Truncate the staging table at the start.
Call the API with the Http worker, streaming the response to fileStore.
Load selected fields into a staging table with sqlInsertFromJson.

This pattern keeps logs clean and maps only the columns you need.

State machine

Assumptions:

JiraParameters is present in state input (e.g., passed in or loaded earlier). If not, add an initial SQLQuery Reader step to fetch parameters from a ref table.

JSON

{
  "StartAt": "truncate_staging_table",
  "States": {
    "truncate_staging_table": {
      "Type": "Task",
      "Resource": "Production-SQLQuery",
      "ResultPath": "$.TruncateResult",
      "Parameters": {
        "ConnectionName": "bevault-staging",
        "Query": "TRUNCATE TABLE stg.jira_cloud_users",
        "Type": "NonQuery"
      },
      "Next": "extract_data"
    },
    "extract_data": {
      "Type": "Task",
      "Resource": "Production-Http",
      "ResultPath": "$.jira_users",
      "Parameters": {
        "OutputFileStoreName": "extract",
        "OutputFileName": "jira-cloud/users.json",
        "Uri.$": "States.Format('{}/users/search?maxResults=500', $.JiraParameters.result[0].base_rest_api_url)",
        "HttpHeaders": {
          "Authorization.$": "$.JiraParameters.result[0].authorization_header",
          "X-Force-Accept-Language": "true",
          "X-Language": "en"
        },
        "HttpQueryParams": {}
      },
      "Next": "insert_in_staging"
    },
    "insert_in_staging": {
      "Type": "Task",
      "Resource": "Production-sqlInsertFromJson",
      "ResultPath": "$.is_loaded",
      "Parameters": {
        "ConnectionName": "bevault-staging",
        "Schemaname": "stg",
        "TableName": "jira_cloud_users",
        "FileToken.$": "$.jira_users.contentFileToken",
        "Columns": {
          "url": "self",
          "technical_id": "accountId",
          "type": "accountType",
          "display_name": "displayName",
          "active": "active"
        }
      },
      "End": true
    }
  }

Notes:

The Http worker writes the response to fileStore and only returns a metadata envelope (including contentFileToken). This keeps logs small and avoids exposing payloads in execution logs.

Pattern B — Dump raw JSON to a single-column staging table, then pivot in a view

Use this when the API returns complex, nested JSON and your mapping will evolve. You:

Truncate the dump table.
Extract and write the API response to fileStore.
Load the entire JSON into a single text/JSON column.
Create a staging view to pivot/explode arrays and expose typed columns.

State machine

JSON

{
  "StartAt": "truncate_dump",
  "States": {
    "truncate_dump": {
      "Type": "Task",
      "Resource": "Production-SQLQuery",
      "Parameters": {
        "ConnectionName": "bevault-staging",
        "Query": "TRUNCATE TABLE stg.users_dump",
        "Type": "NonQuery"
      },
      "ResultPath": "$.truncateResult",
      "Next": "get_data"
    },
    "get_data": {
      "Type": "Task",
      "Resource": "Production-Http",
      "Parameters": {
        "Method": "GET",
        "Uri.$": "States.Format('https://{}/api/users',$.baseUri)",
        "HttpHeaders": {
          "Authorization.$": "States.Format('Bearer {}', $.tokenResult.jsonContent.access_token)"
        },
        "outputFileName": "extract_api/users.json",
        "outputFileStoreName": "extract"
      },
      "ResultPath": "$.usersResult",
      "Next": "insert_data"
    },
    "insert_data": {
      "Type": "Task",
      "Resource": "Production-sqlInsertFromJson",
      "Parameters": {
        "connectionName": "bevault-staging",
        "Schemaname": "stg",
        "TableName": "users_dump",
        "FileToken.$": "$.usersResult.contentFileToken",
        "columns": {
          "output": "$"
        }
      },
      "ResultPath": "$.is_loaded",
      "End": true
    }
  }
}

Staging table DDL

SQL

CREATE TABLE IF NOT EXISTS stg.users_dump (
  output text
);

Example staging view to pivot the JSON

The example below:

Reads the API’s Records array from the stored JSON.
Exposes selected fields as columns.
Leaves nested ExternalIdentifiers as raw text (you can further normalize it if needed).

SQL

CREATE OR REPLACE VIEW stg.v_users AS
SELECT
  rec ->> 'Id'                AS person_unique_id,
  rec ->> 'GivenName'         AS first_name,
  rec ->> 'FamilyName'        AS last_name,
  rec -> 'Email' ->> 'Address' AS email_address,
  (rec -> 'ExternalIdentifiers')::text AS external_ids_raw
FROM stgusers_dump d
CROSS JOIN LATERAL jsonb_array_elements(
  COALESCE(d.output::jsonb -> 'Records', '[]'::jsonb)
) AS rec;

Tips:

As API shapes evolve, you only update the view logic—your ingestion remains unchanged.
For deeply nested objects and arrays, combine jsonb_array_elements, jsonb_to_recordset, and additional lateral joins.
In this example, the mappings between the staging and the raw vault are done on the view. There will be no mapping on the staging table stg.users_dump.
You can create as many views as needed on the dump table to create specific staging view in case of multiple nested objects in the JSON.

Pattern C — Extract from a paginated API (example: Shopify with Link headers)

This pattern:

Loads API parameters from a reference table.
Truncates the dump table.
Fetches the first page to fileStore and loads it.
If a Link header contains rel="next", it extracts the next URL and loops until exhaustion.

State machine

JSON

{
  "StartAt": "api_parameters",
  "States": {
    "api_parameters": {
      "Type": "Task",
      "Resource": "Production-SQLQuery",
      "ResultPath": "$.ShopifyParameters",
      "Parameters": {
        "ConnectionName": "bevault-staging",
        "Query": "SELECT * FROM ref.shopify_parameters",
        "Type": "Reader"
      },
      "Next": "truncate_customers_table"
    },
    "truncate_customers_table": {
      "Type": "Task",
      "Resource": "Production-SQLQuery",
      "ResultPath": "$.TruncateResult",
      "Parameters": {
        "ConnectionName": "bevault-staging",
        "Query": "TRUNCATE TABLE stg.shopify_customer_dump",
        "Type": "NonQuery"
      },
      "Next": "extract_customers"
    },
    "extract_customers": {
      "Type": "Task",
      "Resource": "Production-Http",
      "ResultPath": "$.customers",
      "Parameters": {
        "OutputFileStoreName": "extract",
        "OutputFileName": "shopify/customers.json",
        "Uri.$": "States.Format('{}customers.json?limit=10', $.ShopifyParameters.result[0].base_rest_api_url)",
        "HttpHeaders": {
          "X-Shopify-Access-Token.$": "$.ShopifyParameters.result[0].authorization_header"
        },
        "HttpQueryParams": {}
      },
      "Next": "load_customers"
    },
    "load_customers": {
      "Type": "Task",
      "Resource": "Production-sqlInsertFromJson",
      "ResultPath": "$.is_loaded",
      "Parameters": {
        "ConnectionName": "bevault-staging",
        "Schemaname": "stg",
        "TableName": "shopify_customer_dump",
        "FileToken.$": "$.customers.contentFileToken",
        "Columns": {
          "customers": "customers"
        }
      },
      "Next": "has_links"
    },
    "has_links": {
      "Type": "Choice",
      "Choices": [
        {
          "Variable": "$.customers.httpHeaders.Link",
          "IsPresent": true,
          "Next": "read-link"
        }
      ],
      "Default": "done"
    },
    "read-link": {
      "Type": "Task",
      "Resource": "Production-SQLQuery",
      "ResultPath": "$.link",
      "Comment": "Extract the next-page URL from the Link header (rel=\"next\").",
      "Parameters": {
        "ConnectionName": "bevault-staging",
        "Query.$": "States.Format('SELECT substring(split_part(link, '';'', 1), ''<(.*)>'') AS link FROM UNNEST(STRING_TO_ARRAY(''{}'', '','')) link WHERE substring(split_part(link, '';'', 2), '' rel=\"(.*)\"'') = ''next''', $.customers.httpHeaders.Link[0])",
        "Type": "Reader"
      },
      "Next": "extract_more_choice"
    },
    "extract_more_choice": {
      "Type": "Choice",
      "Choices": [
        {
          "Variable": "$.link.result[0].link",
          "IsPresent": true,
          "Next": "extract_more"
        }
      ],
      "Default": "done"
    },
    "extract_more": {
      "Type": "Task",
      "Resource": "Production-Http",
      "ResultPath": "$.customers",
      "Parameters": {
        "OutputFileStoreName": "extract",
        "OutputFileName": "shopify/customers.json",
        "Uri.$": "$.link.result[0].link",
        "HttpHeaders": {
          "X-Shopify-Access-Token.$": "$.ShopifyParameters.result[0].authorization_header"
        },
        "HttpQueryParams": {}
      },
      "Next": "load_customers"
    },
    "done": {
      "Type": "Pass",
      "End": true
    }
  }
}

Good practices and notes

Keep payloads out of logs: Always use OutputFileStoreName/OutputFileName (or their lowercase variants) so the Http worker writes to fileStore. Downstream steps should pass around contentFileToken rather than the JSON body.
Idempotency: Truncate at the beginning of the flow when you are doing full refreshes.
Parameterization: Drive URIs, headers, and connection names from reference tables or State input to make flows reusable across projects/environments.
Pagination variants: Some APIs paginate with numeric page/offset or cursor parameters instead of Link headers. Adapt the loop to increment the page or pass the cursor returned by the previous call.
Rate limiting and retries: If your API enforces limits, configure retry policies on the Http task (backoff, max attempts) and consider pause/sleep steps between requests.
Schema drift: Prefer Pattern B for rapidly changing or deeply nested JSON. Use views to stabilize downstream consumption.
